I/O Cable with 16 Position Breakout Block

This cable brings out all of the I/O signals from frame grabbers that have an external 16 pin D-Sub connector. Currently the only model with this type of connector is the Axion 1xB. The signals are brought out to a terminal block with easy to use screw connectors. Each connector is labeled with a pin number that matches a numbered diagram in the hardware reference manual.

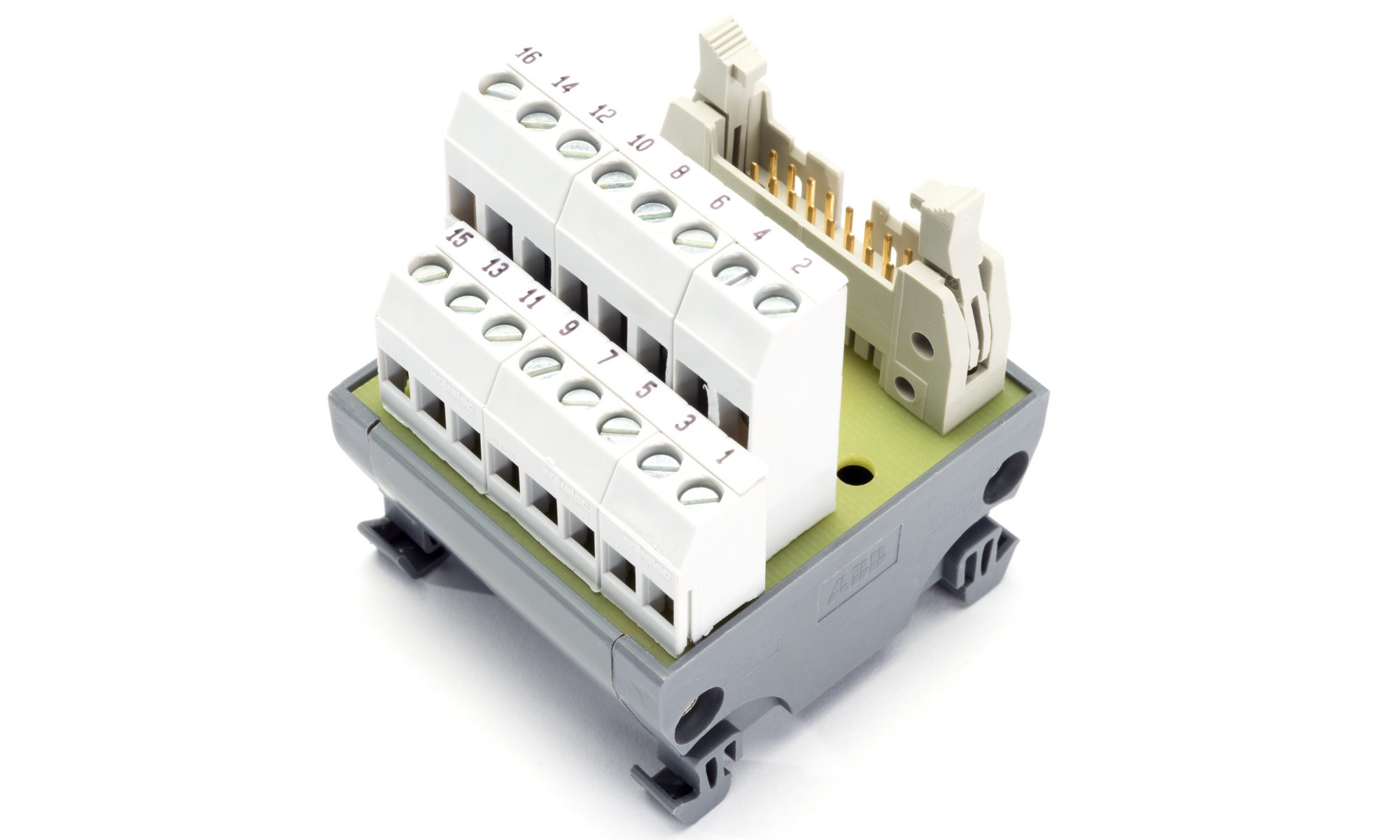

This cable consists of two parts. The first part is a breakout block which allows easy connections to multiple signals. The breakout block has standard industrial mounting capabilities. The second part is a Axion 1xB specific cable that brings the signals from the frame grabber’s external 15 pin D-Sub connector (next to the Camera Link connector) to the terminal block.

Frame Grabber to Breakout Block Cable

Ordering Information

Part number:  IOB-DEV-C16

SDK independent


Axion manual
