I/O Cable for Dual Camera triggering (Axion 2xB)

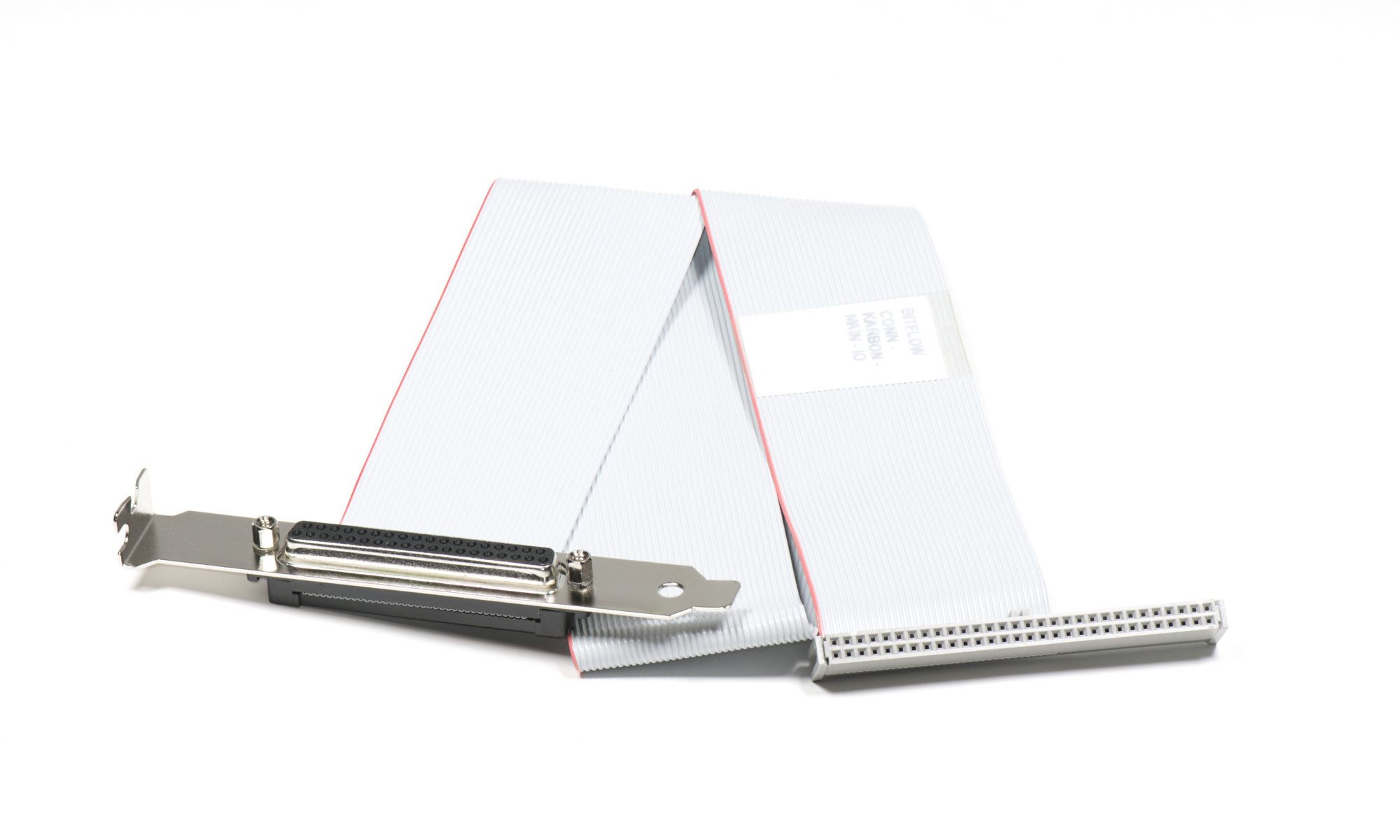

This cable brings out the all of the I/O signals from the Axion 2xB’s 40 pin connector. The signals are brought out to a 37-pin D-Sub connector that mounts in a PC slot. This cable is suitable for use with up to two cameras.

This cable replaces the CONN-NEON-D-IO which was used for the Neon CLD. A comparison pin out table is available below.

The follow image illustrates how this cable is used.

Ordering Information

Part number: CONN-DEV-C37

SDK Independent


Cable pin outs
