IOB-DEV-C40

I/O Cable with 40 Position Breakout Block

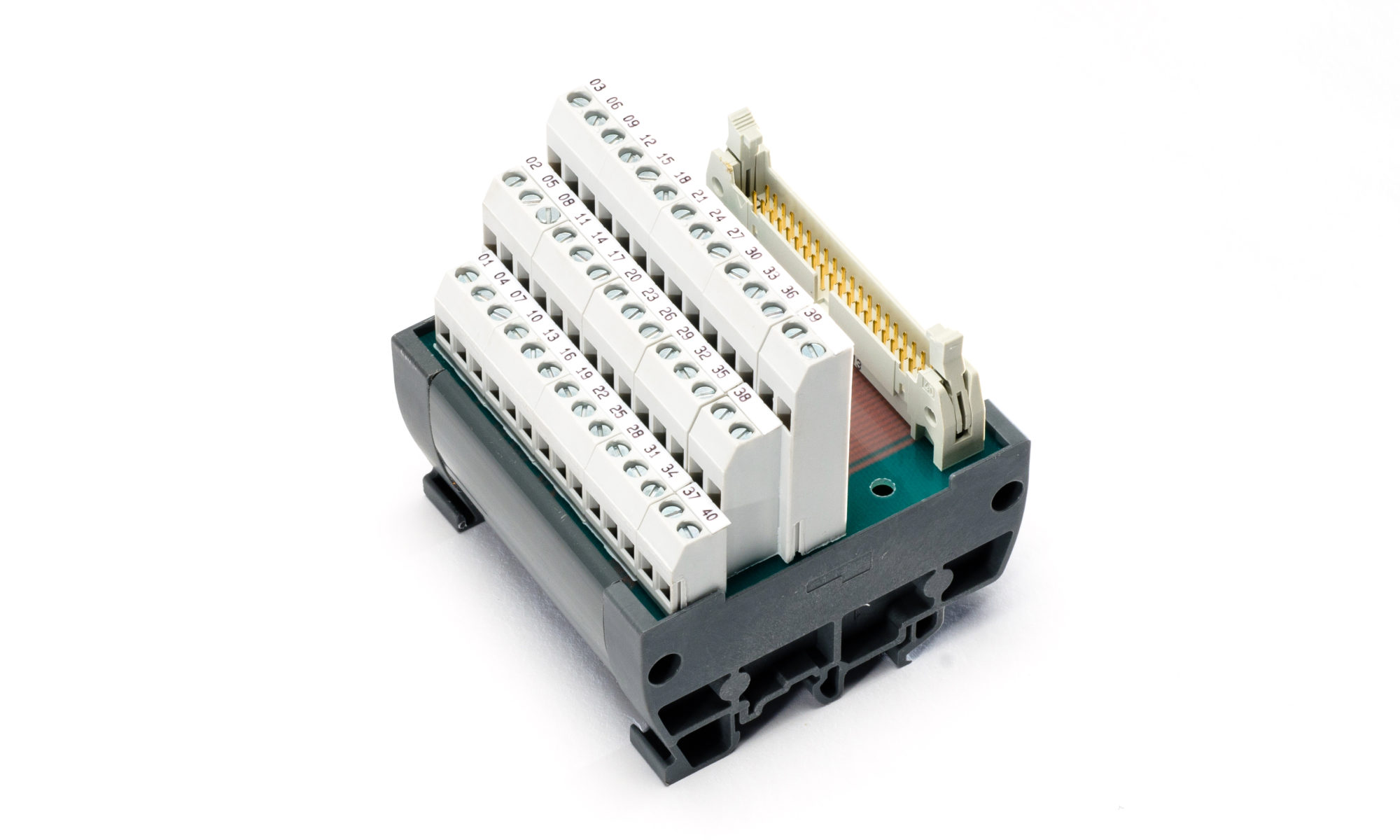

This cable brings out all of the I/O signals from frame grabbers that have an internal 40 pin I/O header. Currently the Axion 2xB and formerly the Neon-CLD are the only models with a 40-pin internal header. The signals are brought out to a terminal block with easy to use screw connectors. Each connector is labeled with a pin number that matches a numbered diagram in the hardware reference manual.

This cable consists of two parts. The first part is a breakout block which allows easy connections to multiple signals. The breakout block has standard industrial mounting capabilities. The second part is a ribbon cable that brings the signals from the frame grabber’s 40 pin header out to the terminal block. This cable is mainly designed for development use and does not include an EMF tight method for bringing the cable from inside the PC to the block outside the PC.

Frame Grabber to Breakout Block Cable

Ordering Information

Part number:  IOB-DEV-C40

SDK independent

Documentation

Axion manual

Neon manual
