CONN-DEV-C62

Universal  I/O Cable for multiple camera triggering, encoders and I/O

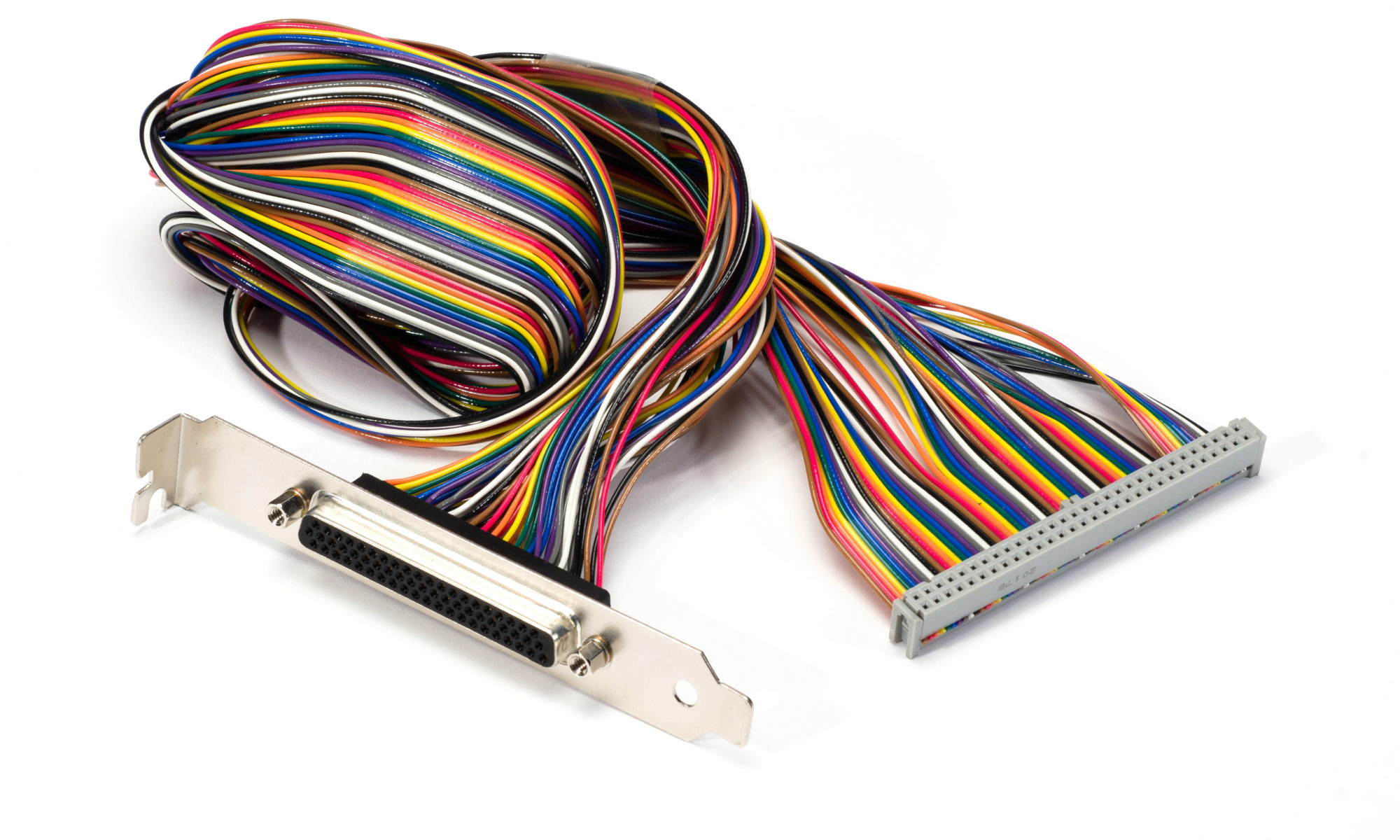

This cable brings out the all of the I/O signals from BitFlow frame grabbers which have an internal 60-pin I/O header. The signals are brought out to a 62-pin D-Sub connector that mounts in a PC slot. This cable is suitable for use with up to four cameras. This cable supports the models listed below.

  • Axion 1xE
  • Axion 2xE
  • Axion 4xB
  • Claxon CXP2
  • Claxon CXP4
  • Cyton CXP2
  • Cyton CXP4
  • Claxon CXP2
  • Claxon CXP4

Note: the following legacy models are also supported by this cable:

  • Karbon-CL2-D
  • Karbon-CL2-F
  • Karbon-CL4-D
  • Karbon-CL4-F
  • Karbon-CXP2
  • Karbon-CXP4
  • Neon-CLQ

Note: that this cable replaces the following legacy cables: CONN-KBN-IO and CONN-CLQ-FIO. These cables are no longer available.

Cable length is 24 inches (60 cm)

The following image illustrates how this cable is used.

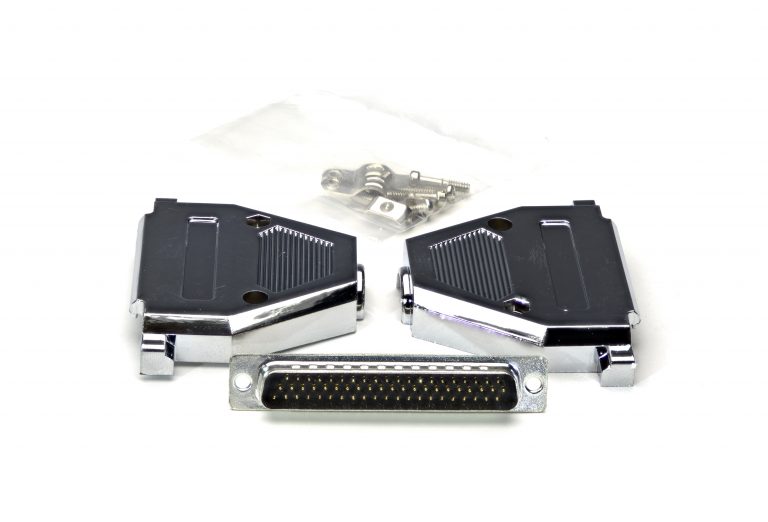

A mating connector is also available for this cable.

Ordering Information

Part number:  CONN-DEV-C62
Mating connector: CONN62-KIT

SDK independent

Documentation

Cable pin outs
